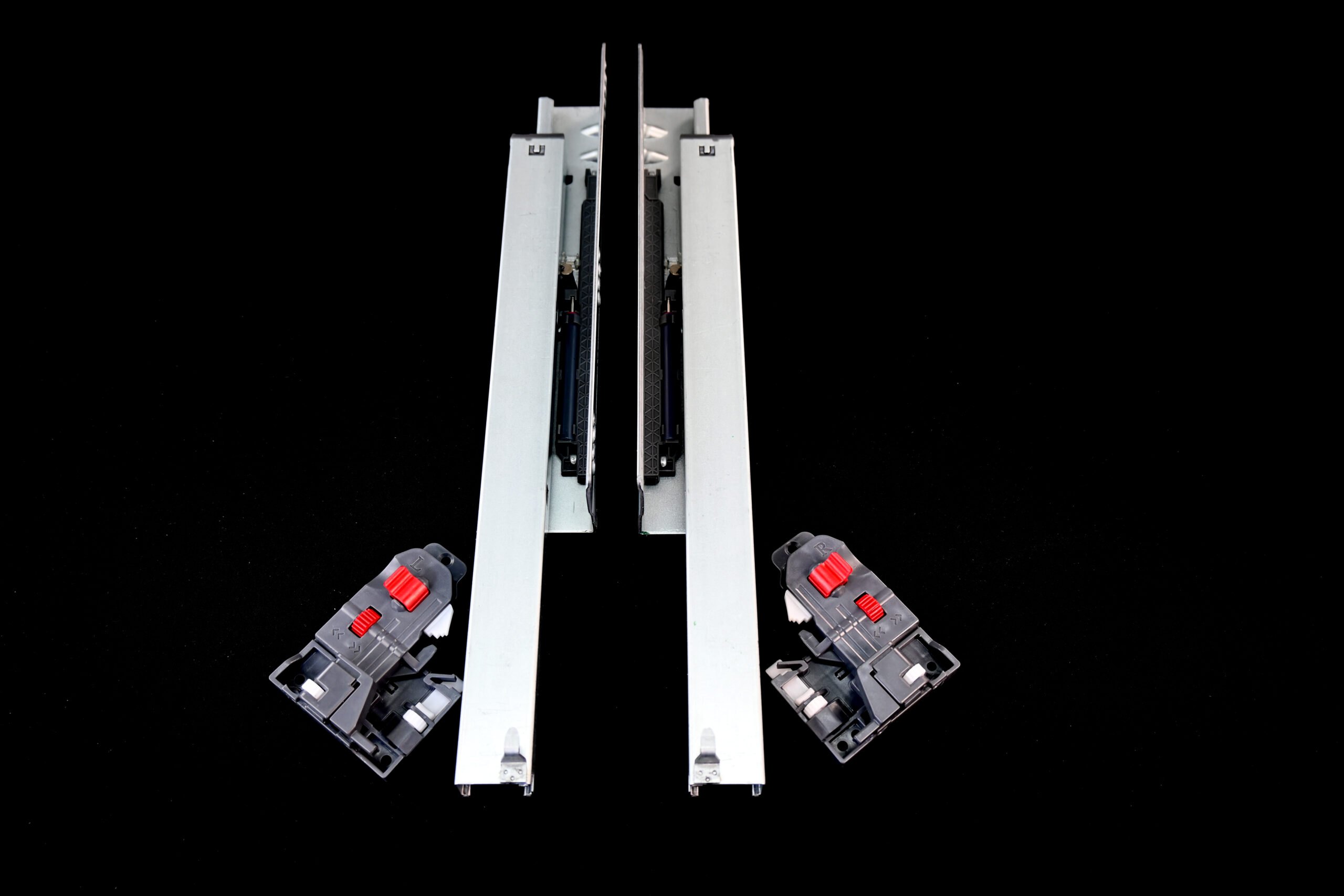

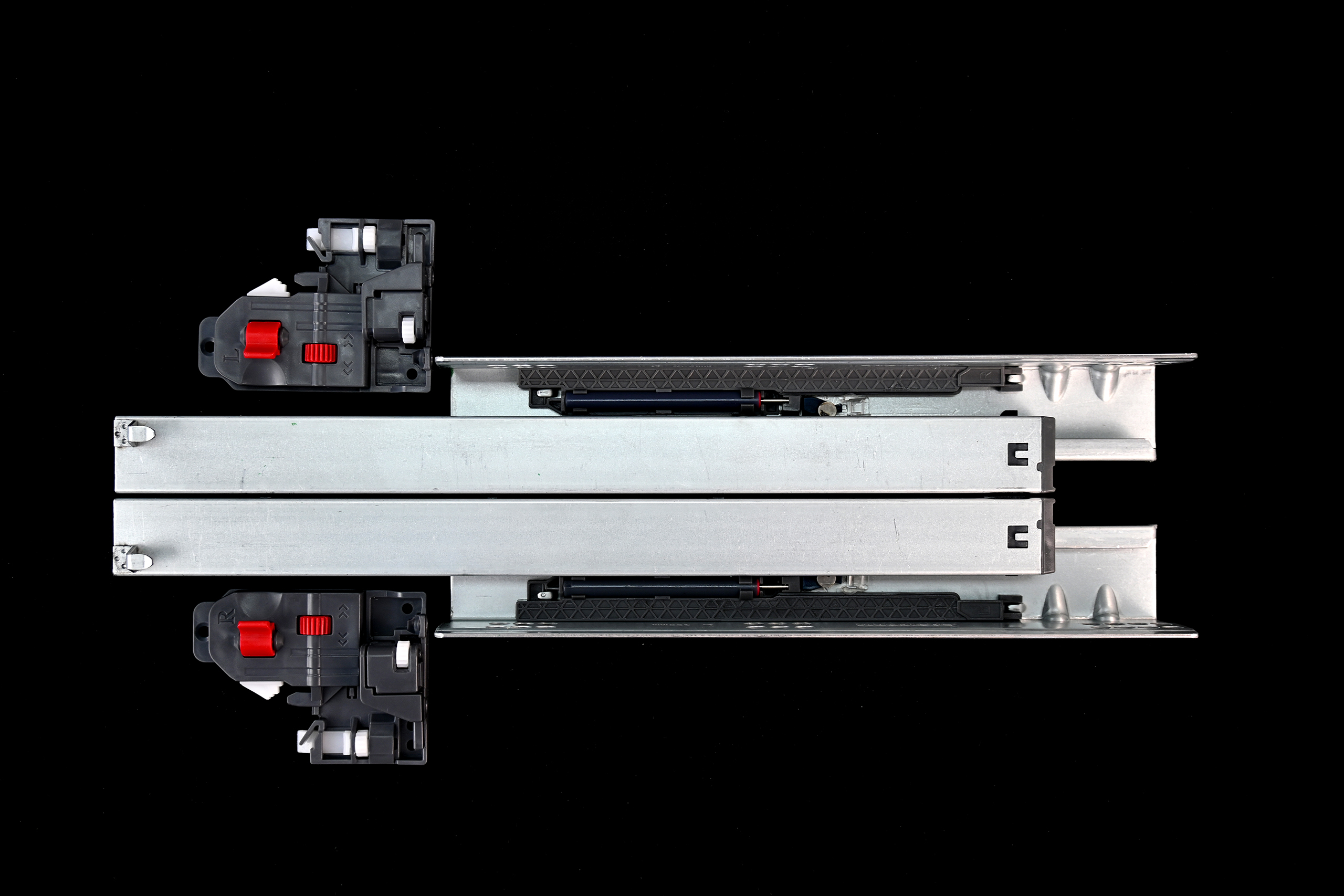

Synchronised Full Extension Soft Close Undermount Slide with 3D Clip
Specific Product Details:
- Product: Synchronised Full Extension Soft Close Undermount Slide with 3D Clip
- Load Rating: 35kg rating (Approx. 77 lbs)
- Packaging: Box of 10 (Likely 10 pairs of runners, or 20 individual slide members)
Available Lengths
The product is available in the following closed lengths:
- 300mm (approx. 12 inches)
- 350mm (approx. 14 inches)
- 400mm (approx. 16 inches)
- 450mm (approx. 18 inches)
- 500mm (approx. 20 inches)
- 550mm (approx. 22 inches)
- 600mm (approx. 24 inches)
This type of slide is popular in luxury and modern custom cabinetry because it completely hides the running hardware, showcasing the craftsmanship of the wooden drawer box.
Key Features & Benefits
| Feature | Description |
| Aesthetics | Concealed Design: The slides are completely hidden underneath the drawer, providing a clean, seamless, and elegant look when the drawer is open. |
| Motion Technology | Soft Close: The integrated damping system (BLUMOTION or similar technology) ensures the drawer glides shut silently and gently, preventing slamming. |
| Extension | Full Extension: Allows the drawer box to be pulled out completely, giving you full access to items stored at the back. |
| Load Rating | High Capacity: Generally rated between 75 lbs (34 kg) and 100 lbs (45 kg), making them suitable for heavy-duty kitchen pots, pans, or dishware. |

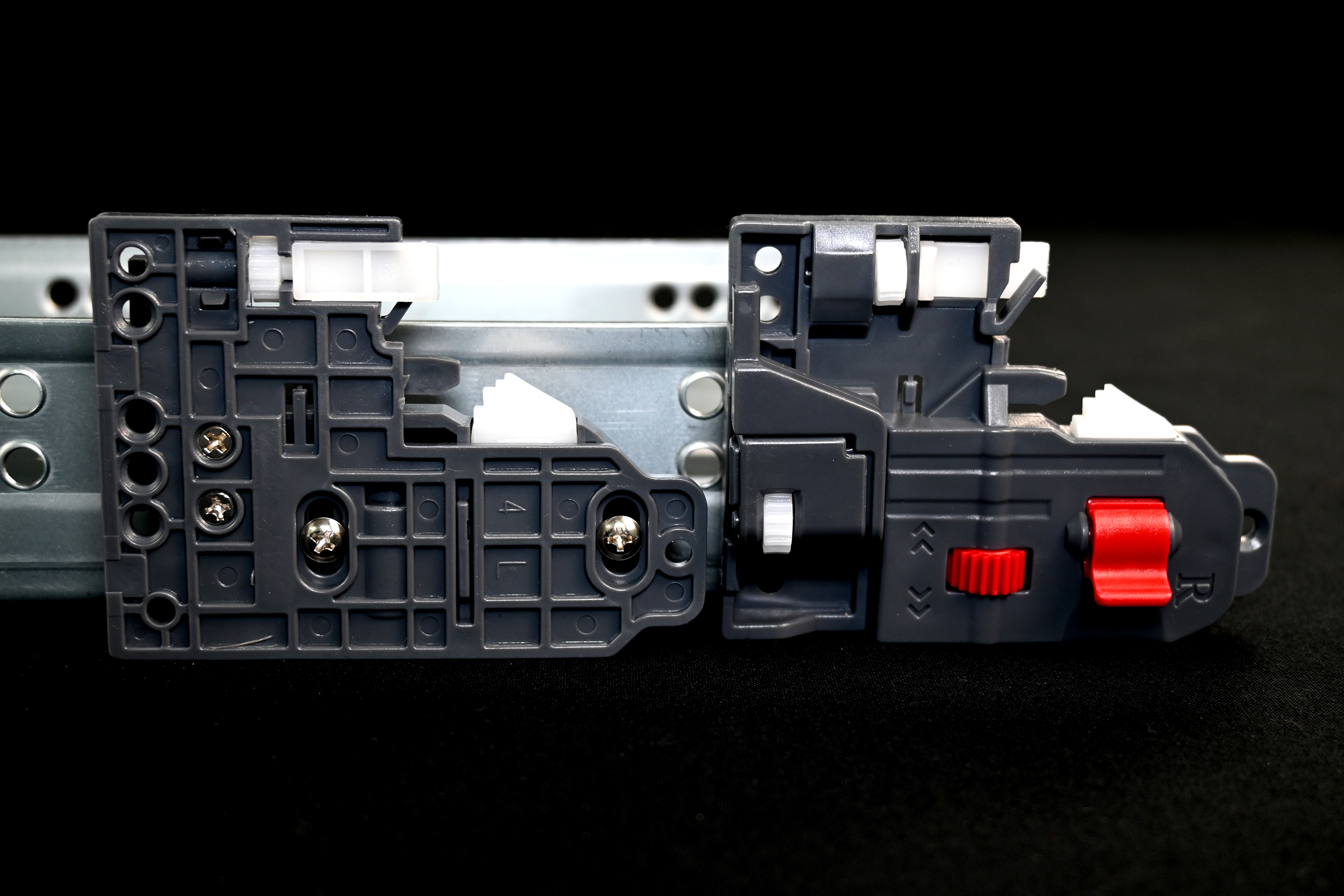

| Adjustment | Front Fixing Clips: The red and black clips provide simple, tool-free vertical (height) and often side-to-side (lateral) adjustment after the drawer is installed, ensuring perfect gaps between the drawer front and the cabinet frame. |
| Space Utilization | Maximum Drawer Width: Because the slide mounts underneath, the slides do not take up space on the sides of the drawer box, maximizing the usable interior storage width compared to side-mount slides. |
| Material | High-quality galvanized steel with a precision ball bearing or roller system for smooth, stable, and durable movement. |
| Runner Type | Visibility | Closing Action | Load Capacity |
| 45mm Ball Bearing (Side Mount) | Visible | Soft Close or Standard | High (45kg) |
| Roller/Epoxy (Side/Bottom Mount) | Visible | Standard (3/4 Extension) | Low to Medium |
| Undermount System (Current) | Invisible | Soft Close | High (45kg+) |
This system offers the best combination of aesthetics, smooth operation, and heavy load capacity for high-end furniture and kitchen cabinets.
